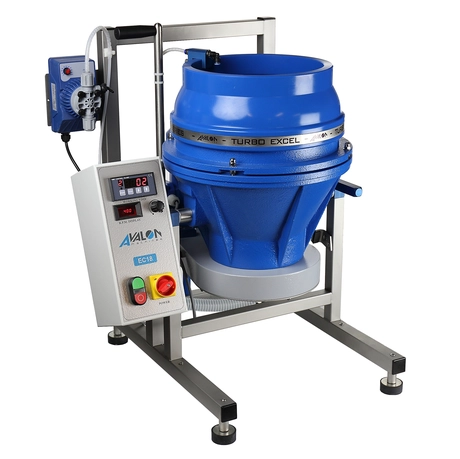

DISC FINISHING MACHINE EC18

Technical Data:

• supply: 230 V; 50 Hz
• power: 0,6 kW
• dimensions: 493x606x1024 mm (WxDxH)
• weight: 76 kg
• working bowl capacity: 18 l.
• working bowl inside diameter : 320mm

Application:

• available for wet processing (EC18 W) or dry processing (EC18 D)
• designed for mass finishing of small workpieces (up to 4 kg at one time)
• suitable for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing
• processing with ceramic, plastic and porcelain chips as well as stainless steel shot

Advantages:

• compact desktop unit
• optimized media movement and excellent processing results due to curved flow-optimized design of the working bowl
• processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
• tilted working bowl for easy unloading
• toroidal movement prevents pieces from sticking to each other and results in targeted material erosion
• processing time is several times shorter comparing to Vibratory Machines
• reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Working Kit:

• Disc Finishing Machine EC18 W: dosing pump, control panel with timer and frequency inverter
• Disc Finishing Machine EC18 D: air pump, control panel with timer and frequency inverter

Accessories:

• compound level sensor with compound tank (20 liters)
• lid with filter for EC18 D
• sound dampening lid for EC18 W
