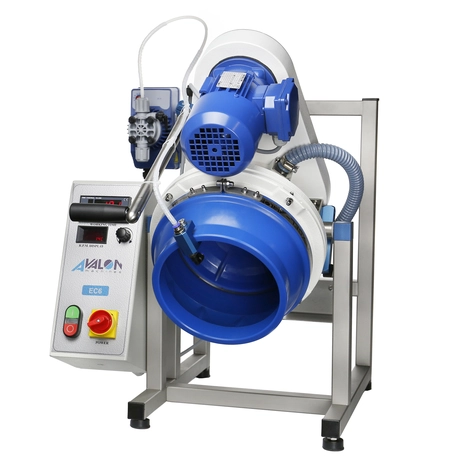

DISC FINISHING MACHINE EC6

Technical Data:

• supply: 230 V; 50 Hz
• power: 0,3 kW
• dimensions: 525x486x702 mm (WxDxH)
• weight: 33 kg
• working bowl capacity: 6 l.
• working bowl inside diameter : 210 mm

Application:

• available for wet (EC6 W) or dry processing (EC6 D)
• designed for mass finishing of small workpieces (up to 0,5 kg at one time)
• suitable for  deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing
• processing with ceramic, plastic and porcelain chips as well as stainless steel shot

Advantages:

• compact desktop version of Disc Finishing Machine suitable for small and medium factories
• optimized media movement and excellent processing results due to curved flow-optimized design of the working bowl
• processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
• tilted working bowl for easy unloading
• toroidal movement prevents pieces from sticking to each other and results in targeted material erosion
• processing time is several times shorter comparing to Vibratory Machines
• reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Working Kit:

• Disc Finishing Machine EC6 W: dosing pump, control panel with timer and frequency inverter
• Disc Finishing Machine EC6 D: air pump, control panel with timer and frequency inverter

Accessories:

• Manual separating unit without sieve
• Plastic sieves (6, 7, 8, 10, 12, 14 mm)
• Stainless steel sieves (4x4, 6x6; 8x8; 10x10; 12x12; 14x14; 16x16 mm)
• Compound level sensor with compound tank (20 liters)
• Lid with filter for EC6 D
• Sound dampening lid for EC6 W
