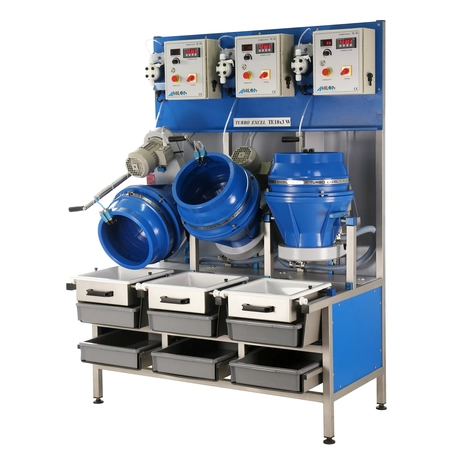

Disc Finishing Machine Te10x3

Technical Data:

• supply: 230 V; 50 Hz
• power: 1,8 kW
• weight: 274kg
• dimensions: 1350x910x1800 mm (WxDxH)
• working bowl capacity: 3x10 l.
• working bowl inside diameter: 3x265 mm

Application:

• available in required configuration (TE10x3 W/W/D, TE10x3 W/W/W, TE10x3 D/D/D)
• designed for mass finishing of small workpieces (up to 2 kg at one time in each working bowl)
• suitable for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing
• processing with ceramic, plastic and porcelain chips as well as stainless steel shot

Advantages:

• machine suitable for multiple-stage processes
• robust stainless steel welded frame with integrated manual separating unit
• optimized media movement and excellent processing results due to curved and flow-optimized design of the working bowl
• processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
• tilted working bowl for easy unloading
• toroidal movement prevents pieces from sticking to each other and results in targeted material erosion
• processing time is several times shorter comparing to Vibratory Machines
• reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Working Kit:

• Dosing pump (according to configuration)
• Air pump (according to configuration)
• Separating unit without sieves
• Compound level sensor with compound tank (according to configuration)

Accessories:

• plastic sieves (6, 7, 8, 9, 10, 12, 14 mm)
• stainless steel sieves (4x4, 6x6; 8x8; 10x10; 12x12; 14x14; 16x16 mm)
• lid with filter for TE10 D
• sound dampening lid for TE10 W
