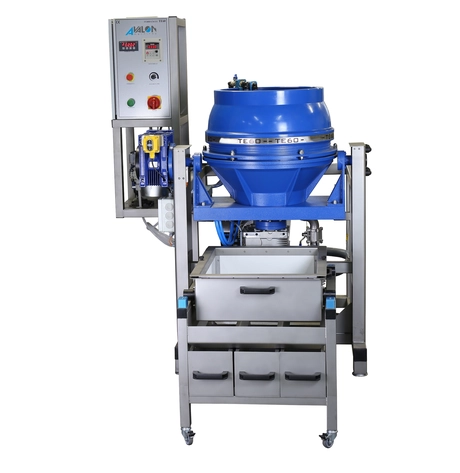

Disc Finishing Machine Te60

Technical Data:

• supply: 230 V; 50 Hz
• power: 1,5 kW
• weight: 168 kg
• dimensions: 500x1040x1800 mm (WxDxH)
• working bowl capacity: 30 l.
• working bowl inside diameter: 400 mm

Application:

• available for wet (TE60 W) or dry processing (TE60 D)
• designed for mass finishing of small workpieces (up to 10 kg at one time)
• suitable for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing
• processing with ceramic, plastic and porcelain chips as well as stainless steel shot

Advantages:

• robust stainless steel welded frame with integrated manual separating unit
• optimized media movement and excellent processing results due to curved and flow-optimized design of the working bowl
• processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
• tilted working bowl for easy unloading
• toroidal movement prevents pieces from sticking to each other and results in targeted material erosion
• processing time is several times shorter comparing to Vibratory Machines
• reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Working Kit:

• Disc Finishing Machine TE60 W: dosing pump, control panel with timer and frequency inverter, compound level sensor with compound tank (20 liters).
• Disc Finishing Machine TE60 D: air pump, control panel with timer and frequency inverter.

Accessories:

• manual separating unit without sieves
• mechanical separating unit TESEPA
• stainless steel sieves (4x4, 6x6; 8x8; 10x10; 12x12; 14x14; 16x16 mm)
• POM sieves for TESEPA
• stainless steel sieves (4x4, 6x6; 8x8; 10x10; 12x12; 14x14; 16x16 mm)
