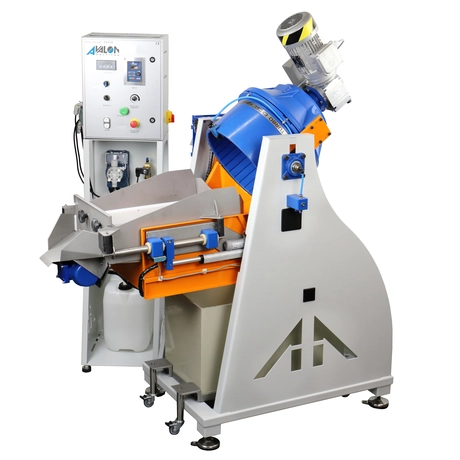

Disc Finishing Machine Tfs30

Technical Data:

• supply: 3 X 400V; 50 Hz
• power: 1,8 kW
• weight: 380 kg
• dimensions: 1600x1100x1900 mm (WxDxH)
• working bowl capacity: 30 l.
• working bowl inside diameter: 400 mm

Application:

• available for wet processing
• designed for mass finishing of small workpieces (up to 5 kg at one time)
• suitable for deburring, radiusing, degreasing, cleaning, smoothing, brightening, polishing
• processing with ceramic, plastic and porcelain chips as well as stainless steel shot

Advantages:

• integrated mechanical separator with a motovibrating motor
• optimized media movement and excellent processing results due to curved and flow-optimized design of the working bowl
• processing of very thin pieces and trouble-free maintenance through use of a very precise gap system (0,05 mm upwards)
• outflow of post-processing sludge through the gear axis, which enables quick and effective rinsing of the working charge
• toroidal movement prevents pieces from sticking to each other and results in targeted material erosion
• processing time is several times shorter comparing to Vibratory Machines
• reliability and durability - polyurethane lining of the working bowl is extremely wear-resistant (8 times higher than steel)

Working Kit:

• dosing pump with compound level sensor
• sludge pump with liqiud level sensor
• Flushing solenoid valve
• Control panel with inverter and timer
• Automatic separation system without sieves

Accessories:

• Stainless steel sieves (4x4, 6x6; 8x8; 10x10; 12x12; 14x14; 16x16 mm)
• Plastic sieves ( 6, 8, 10,12,14,16 mm)
